Sublimation Machine Types :
1. Surface Sublimation Machine
2. Profile Sublimation Machines

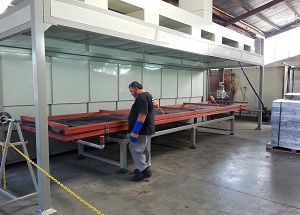

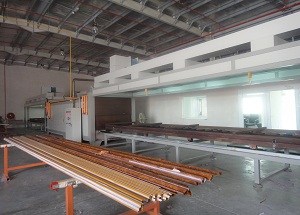

Surface Sublimation Machine :
This Machine is a very efficient transfer printing system, suitable for various shape profiles, Sheets and other small products.
This Machine can be equipped with single system (one side) or double system (two side table) according to the required capacity and customer factory dimension.
This machine is manufactured in two models:
-Standard
-Automatic
| System Configuration | Single System, Double System |
| Annual Capacity | 1000 – 1800 tons |
| Working Table Size | 7 X 1.5m |
| Labour Required | 2 -3 Workers |
| Combustion System | Riello / Baltur |
| Heating Resource | Diesel Oil, Gas, LPG, Electricity |
| Operation | Automatic / Standard |
| Vacuuming System | Centrifugal |
Note: The annual capacity is based on profile dimension of (L*W*H)
This Machine can be available in Two Models:
1. Front and back beds:
2. Side Beds :
Surface Sublimation Advantages:
1. Suitable for massive production
2. Easy working procedure
3. Good Efficiency
4. Lowest material Cost
5. Sublimation paper
6. Suitable for sheets sublimation

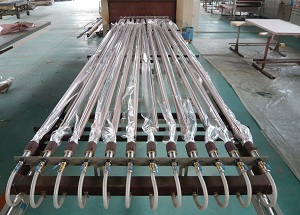

Profile Sublimation Machine:
This Machine is a very efficient transfer printing system, suitable for various shape profiles and lengthy aluminium profiles which are used in making of windows, Doors and Pacads.
We supply sucking heads suitable for transferring complex slot profiles, ensure the slot placed transfer texture is complete and vivid. The whole process is very time consuming may be over 30 minutes for one batch. But it suitable for various shape profiles, as auxiliary of working systems.
